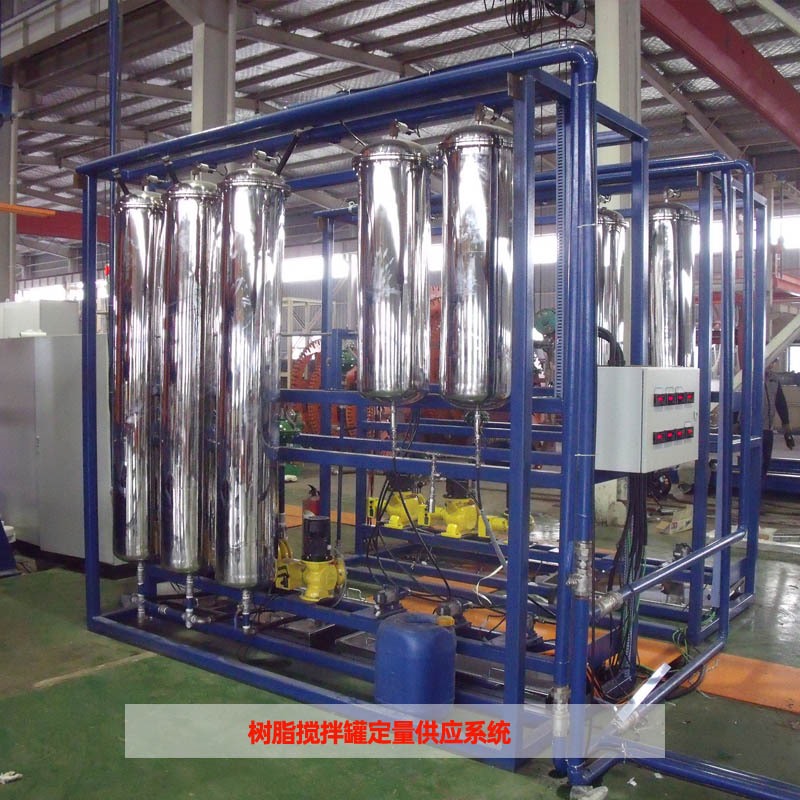

树脂搅拌罐定量供应
RDSS树脂定量供应系统介绍
树脂定量供应设备功能、组成及原理：
设备功能：
树脂定量供应是连续制管生产线上辅助设备，用于CFW连续制管缠绕机树脂和固化剂的定量供应，树脂与固化剂量为闭环控制可在线反馈，受控于PLC。
设备组成：
其由树脂计量泵、固化剂计量泵、管路、称重及电气控制系统等机构组成。
工作原理：
来自树脂搅拌罐树脂经隔膜泵打入内衬树脂、结构层树脂计量罐。固化剂储存罐内固化剂经固化剂输出泵输送到固化剂计量罐内。再由树脂、固化剂计量泵按生产管道实际用量泵送到搅拌淋胶头均匀的淋到管道模具上，从而完成树脂固化剂的定量输送。
Introduction to Resin Dosing Supply System
Equipment function, composition and working principle:
Function--
As an auxiliary equipment in the continuous winding production line, Resin Dosing Supply System is designed for the rationing supply of resin and catalyst. Controlled by PLC, the amount of resin and catalyst are of close-loop control and can be reflected on line.
Composition--
It mainly consists of resin dosing tanks, catalyst dosing tanks, pipeline, weighing device and electrical control system.
Working principle--
Via membrane pump, resin transferred from mixing tank is pumped into resin doing tanks for liner and structure. Catalyst is transferred into the catalyst dosing tanks by catalyst pump. Then, according to the actual production amount, resin and catalyst are pumped separately into the mixers above and sprayed onto the mould. In this way, rationing transfer of resin and catalyst will be done.
