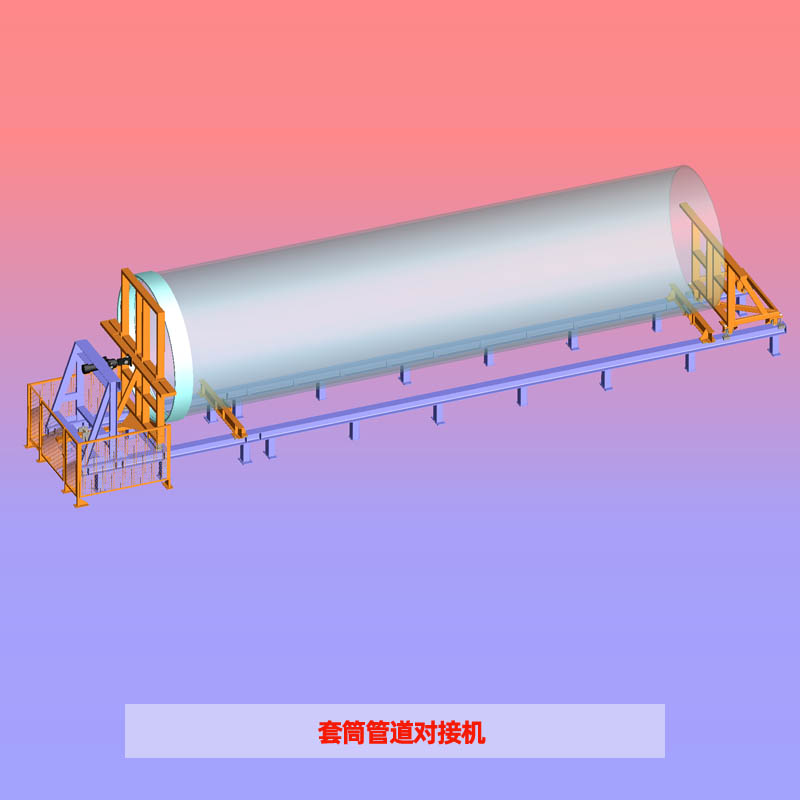

套筒管道对接机
SJM套筒管道对接机介绍
设备功能、组成及原理：
设备功能
套筒管道对接机功能是连续管道生产线上辅助设备，用于连续管道与套筒接头对接套装
设备组成
主要由管道与套筒支架平台 、管道与筒对接液压推进装置、电控系统等机构组成。
工作原理
将要对接套装套筒接头放置在套筒支架平台，管道放置在管道支架平台。起动液压装置在液压缸的作用下将套筒接头压装在管道上。从而完成套筒接头与管道对接套装工作。
Introduction to Sleeve Jointing Machine
Equipment function, composition and working principle:
Function--
As an auxiliary equipment in the continuous winding production line, Sleeve Jointing Machine is designed for the butt connecting of pipe and sleeve .
Composition--
It mainly consists of pipe and sleeve support table, hydraulic propelling device for pipe and sleeve connecting and electrical control system.
Working principle--
Separately lay the sleeve for jointing onto the sleeve support table and the pipe onto the pipe support table. Start the hydraulic device to mount the sleeve onto the pipe with the action of hydraulic cylinder, thereby finishing the sleeve jointing.
